RBUV243G

Identification

Chemical Family

Acrylics & Acrylates

GBU

EA

RTU Product Type

1K (1 component) Adhesive,

Radiation Curable Adhesive

Categories

Technologies → Adhesives & Sealants → Product Families → Bonding Technology → 1K Liquid Reactive Adhesives

Technologies → Adhesives & Sealants → Product Families → Bonding Technology → Radiation Curing Adhesives

Applications

Compatible Substrates & Surfaces

Plastics,

Poly(Methyl Methacrylate) (PMMA),

Polyethylene Terephthalate (PET),

Polyethylene Terephthalate Glycol (PET-G)

Applications & Uses

Product Application Instructions

• Surfaces to be bonded should be clean and dry. Dispense a drop or drops to one surface only. Apply only enough to leave a thin film layer after compression. Press parts together and expose to UV dose when ready. An adequate bond should develop rapidly, depending on UV dose efficacy, and maximum strength is attained in 24 hours. Wipe off excess adhesive from the top of the container and recap. products, if left uncapped or exposed to sunlight, may deteriorate or cure prematurely.

Features

Ready-to-Use Product Features

UV Curable

Packaging & Availability

Regional Availability

• North America

Physical Properties

Physical Form

Liquid

Appearance

Light straw liquid

Appearance

Colorless solid

Properties

Curing Properties

• Photoinitiation initiates the curing process. Handling strength is reached in a short time, and will vary based on UV dose efficacy, environmental conditions, bond line gap, and other factors. Product will continue to cure for at least 24 hours before full strength and solvent resistance is developed.

Specifications

	Value	Units	Test Method / Conditions
Specific Gravity	1.06	-	-

Cured Properties

	Value	Units	Test Method / Conditions
Cured Appearance	Colorless solid	-	-
Elongation to Break	450	%	ASTM D638
Flash Point	min. 95	°C	-
Full Cure Time	24	hours	-
Hardness	40	Shore D	ASTM D2240
Hardness	68	Shore A	ASTM D2240
Optimum Wavelength (optimum)	365 - 420	nm	-
Set Time (at 395nm, 50mW/cm³)	max. 4	seconds	-
Storage Condition (in darkness)	8 - 21	°C	-

Rheological Properties

	Value	Units	Test Method / Conditions
Viscosity (at 20 - 25°C)	700 - 1500	cPs	-

Appearance

Light straw liquid

Storage & Handling

Storage Infromation

• Products should be stored unopened in a cool, dry place out of direct sunlight. Products should be kept at room temperature away from direct light. Protect from extreme heat or cold, do not refrigerate.

Shelf Life

9 mo

Technical Details & Test Data

Graphical Information

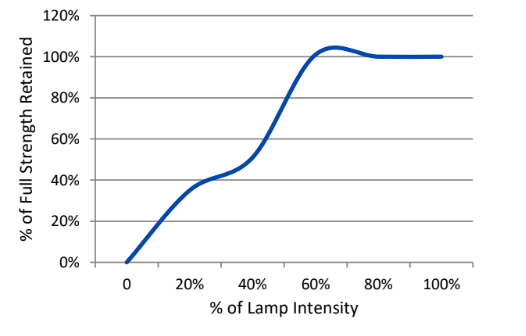

Percent Strength Retained at Given Dosage

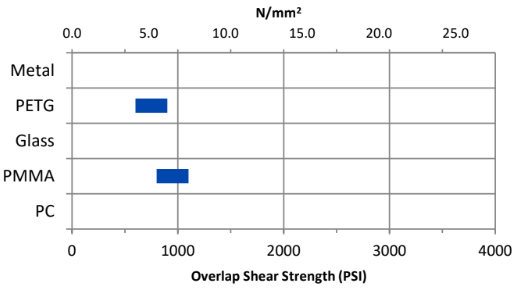

Performance of Cured Adhesive

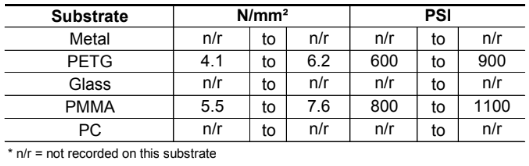

Performance Range, by Substrate
