Enhanced TDS
Identification & Functionality
Features & Benefits
- Ready-to-Use Product Features
- Product Highlights
- Fluorescent UV Indicator
- High environmental resistance to gas, LP gas, gasoline, oils, and industrial fluids.
- High resistance to heat, corrosion, vibrations, water, and many chemicals.
Applications & Uses
- Markets
- Applications
- Application Area
- Compatible Substrates & Surfaces
- General Instructions
- Surfaces to be bonded should be clean and dry and free of grease.
- Apply enough product to fill all engaged threads or gaps.
- The product performs best in thin bond gaps. Very large gaps may affect the cure speed and overall strength.
- Good contact is essential.
- It is recommended to confirm compatibility of the product with all substrates prior to use.
- This product is not recommended for use with strong oxidizing materials.
- Where aqueous washing systems are used to clean surfaces before bonding, these washes may affect the cure and performance of the adhesive.
- This product is not normally recommended for use on plastics; users must check compatibility with such substrates.
Properties
- Color (Properties)
- Physical Form
- Appearance
- Purple light paste
- Cured Properties
Value Units Test Method / Conditions Specific Heat 0.3 kJ/kg·K - Coefficient of Thermal Expansion 80.0 ppm/K ASTM D696 Thermal Conductivity 0.1 W/m·K ASTM C177 Pin/Collar Shear Strength 3 to 9 MPa - Shear Strength 3 - 9 MPa - Tensile Strength 7 - 21 MPa - Service Temperature -55 to 150 °C - - Uncured Properties
Value Units Test Method / Conditions Storage Condition 8 - 28 °C - Set Time on Steel 48 - 72 hours - Flash Point min. 93 °C - Viscosity (at 25°C, Spindle 2, 5 rpm) 200,000 - 350,000 cPs Brookfield Specific Gravity 1.1 - - - Curing Conditions
The rate of cure will depend on environmental conditions and the substrates used. The gap of the bond line will affect set speed. Smaller gaps tend to increase set speed. Activators may be applied to further improve set speed, but may also impair overall adhesive performance.
- Full Cure Conditions
24 hours at room temperature, or 45°C bondline temperature for 1 hour to achieve min. 70% of strength on steel, or apply activator to opposite surface as adhesive to
Technical Details & Test Data

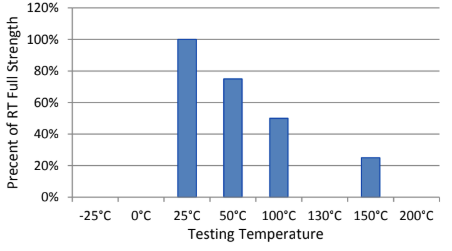

- Hot Strength (%RT strength, tested at temperature)
- Cure Speed Data
Cure Speed At Various Temperatures
Percentage of Room Temperature Strength
25% 50% 100% 5°C 2 hrs 4 hrs 24 to 48 hrs 40°C 15 min 30 min 12 hrs - Cure Speed On Various Substrates
Test Temperature % of Room Temperature Strength Condition 50% Water/50% Glycol 87°C 80% 1000 hours measured at room conditions
Unleaded Gasoline 22°C 15% 1000 hours measured at room conditions
Motor Oil 125°C 165% 1000 hours measured at room conditions
- Cure Speed For Various Gap Sizes
% of Room Temperature Strength
Gap Sizes 25% 50% 100% 0.0mm 1 hr 3 hrs 24 hrs 0.05mm 24 hrs 48 to 72 hrs - Chemical Resistance Testing
Test Temperature % of Room Temperature Strength Condition 50% Water/50% Glycol 87°C 80% 1000 hours measured at room conditions
Unleaded Gasoline 22°C 15% 1000 hours measured at room conditions
Motor Oil 125°C 165% 1000 hours measured at room conditions
Packaging & Availability
- Regional Availability
Storage & Handling
- Shelf Life
- 12 months
- Storage Conditions
H.B. Fuller GM 10 should be stored unopened in a cool, dry place out of direct sunlight. Products may be refrigerated for improved shelf life, but should be brought back to room temperature before use.
